GYLED LED Lights Warranty:
We do the warranty not from guarantee words or paper, but from our quality confidence and responsibility to our customers
-----(1) If the driver failed, we'll send a new driver.
-----(2) If the LED failed, we'll send a new LED.
-----(3) Unclear reason, we'll send full new set.

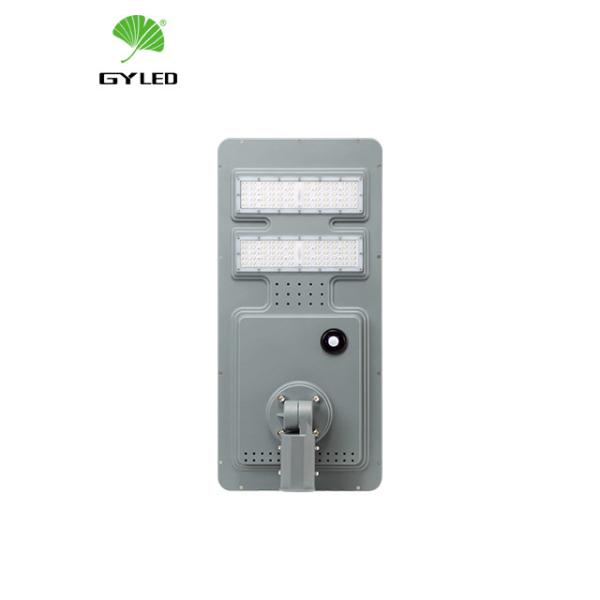

Product Structure:
1. High-efficiency monocrystalline silicon:
Solar panel, the surface is covered with high-transmission tempered glass,More light absorption, high conversion efficiency. After being fully charged, it can last for 3 rainy days.
2. High efficiency:
Use 3030 LED light source with high light efficiency and low light decay. With high light transmission, UV-resistant PC lens. Lighting efficiency ≥140lm/w.
3. Housing
The lamp housing is made of die-cast aluminum, which has a beautiful appearance and good mechanical strength. All fasteners pieces are made of stainless steel.
4. Operating mode
Light control + induction: Integrated design of switches and sensors. Use the remote control switch for the first time
5. Installation
The luminaire is equipped with die-cast aluminum mounting joints, which are sturdy and durable. It can be installed horizontally and vertically, and the installation angle is adjustable from 0° to 180 °.
The rotating part is locked by a screw. The lamp can be equipped with a tube below φ60mm.
6. IP rating: IP65
Suitable For:
Streets, Highways/ Roadways/Sidewalk, Pathways, Parking lots, Parks / Open areas, Riverside pavements, Factories, Perimeter fences, Jetties, Schools, Campuses, Commercial, Private compounds.
Product Description
| Parameter items | GY6637LD20-TYN | GY6637LD40-TYN | GY6637LD60-TYN | GY6637LD80-TYN |
| LED Power | 20W | 40W | 60W | 80W |
| Luminous flux | 2400lm | 4800lm | 7200lm | 9600lm |
| Input voltage | DC power by solar panel |
| Ambient temperature | -20℃~+60℃ |
| IP Rating | IP65 |
| Beam angle | as the distribution curve show |
| Application area | courtyard, park, roadway, garden |
| Installation height | 3-4m | 4-5m | 5-6m | 6-7m |
| Warranty | 3 Years |
| Material | Die-cast aluminum + PC lens |
| Certificate | CE |
| Brand | OEM/GYLED |
| Charging time | 6 hours under strong sunlight |
| Working model | The light goes out during the day and lights up at night. The lights light up when people come (100% on), with a delay of 25 seconds; the lights go off when people left (20% on). |
| Discharge time | 2-3 days |
| LEDs | LED SMD3030 |
| Color temperature | 2700-6000K |
| Color rendering index | ＞70 |
| LEDs' lifespan | ＞50000H |
| Solar panel | Monocrystalline silicon |
| 18V/25W | 18V/25W | 18V/25W | 18V/25W |
| Battery | LiFePO4 battery |
| 12.8V/9AH | 12.8V/12AH | 12.8V/18AH | 12.8V/28AH |
| Body dimensions | 549*294*68mm | 659*367*68mm | 789*367*68mm | 1000*430*84mm |
| Carton size | 600*360*270mm | 740*440*270mm | 850*440*270mm | 1080*490*270mm |
| Qty/Carton | 1 | 1 | 1 | 1 |
| Accessories | 1 pcs remote controller |
| Net Weight | 6.4KG | 9.0KG | 10.5KG | 15.0KG |
Benefits
LED solar streetlight: stand-alone product, no electricity bill, and no grid connection.
Very long lifetime: innovative high heat resistance NiMH battery & intelligent lighting management.
Lighting service all night long: enhance personal safety, economic and social activities.
User friendly: Plug & Play and All-in-one concept, easy installation.
Connected product: Bluetooth enabled for product registration, remote monitoring, troubleshooting, and lighting profile management.
